THE VISION – 2HEADS – BAi Commercial Embroidery Machine

Price range: $9,600.00 through $11,000.00

BAi THE VISION-2 Heads Embroidery Machine Double Head Multi Needles Embroidery Machine for Hat, Heavy Duty Structure Industrial Embroidery Machine

THE VISION-2 Heads focuses on the embroidery quality and is responsible for the embroidery results; it is more stable, quieter and more precise.

It’s the perfect upgrade to single-head machines, doubling your production capacity without breaking the bank and is the perfect addition to smaller shops.

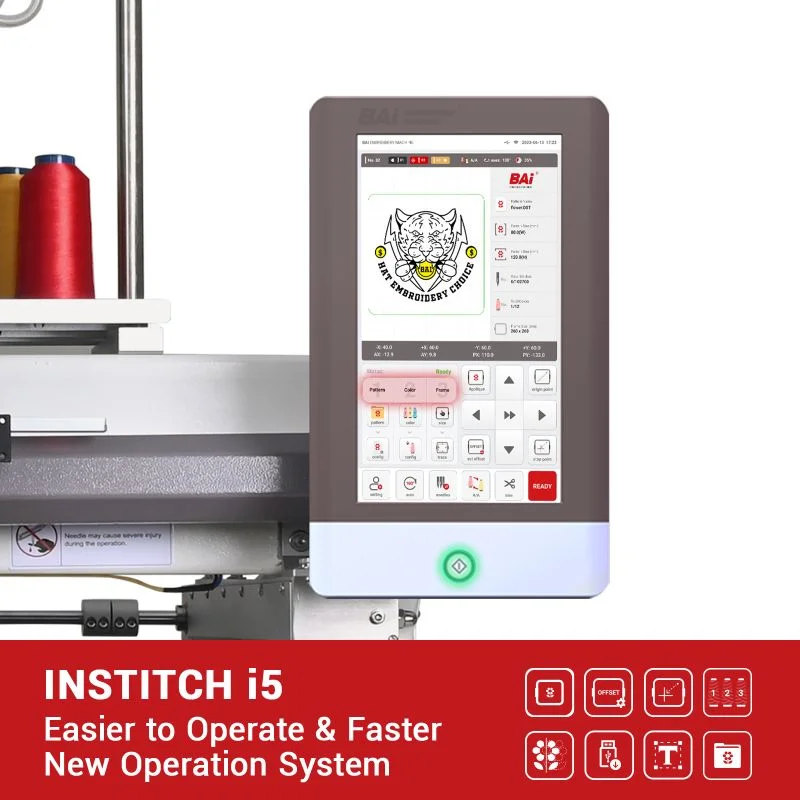

  • Institch OS5 Electronic Control
  • Humanized Operation Designs
  • Free Training & Technical Support
  • Social Media Support
  • Mold assembly process
SKU: THE VISION 2 Categories: , Brand:

Description

Why do I need a double head embroidery machine?

Don’t let production capacity limit your speed of making money. THE VISION-2HEADS allows you to operate on both heads without spending the budget of a multi head machine, doubling efficiency. No longer have to suffer from staying up late to rush production.

THE VISION-2HEADS double head embroidery machine doubles efficiency, allowing you to work on both heads without the high cost of a multi-head machine, boosting production capacity and reducing overtime.
–

What can I do with THE VISION-2Heads embroidery machine?

There is no limit to imagination. You can embroider it as long as you can hoop it. Use THE VISION-2 Heads to embroider hats, clothing, bags, hoodie jackets, leather, shoes, patches and more.

The Vision embroidery machine can be used to embroider a wide variety of items including hats, clothing, bags, jackets, leather, shoes, patches, and more.
–

Why is THE VISION-2Heads Superior in Performance?

Every factor that affects the precision of embroidery has been considered. Where you cannot see are details.



Belt & Pulley Upgrade

– Aluminum alloy material & High enough strength – Continental belt & Smoother tooth bite – Quieter in motion & Longer service life

Image 1
–
Motor Upgrade

-Servo motor for Main-axis -Better motors for X-axis & Y-axis -More Precise, More Stable

Image 1
–

Bearing Upgrade

– Japanese & Swedish bearings – Maintenance-free – No need for oiling

Image 1
–

Handrail Upgrade

– Aluminum alley material – Hard oxidation treatment – Higher tensile strength

Image 1
The mechanical structure has been refined, improving stability, precision, and penetration power.



Flat Body Design

Lower height, more stablecenter of gravity.

Image 1
–

Powerful Transmission

Enhanced penetration for 3D hat embroidery and multi-layer designs.

Image 1
Special motion curve adjustment for various embroidery types.



Flat embroidery motion curve correction

Image 1
–

T-shirt embroidery motion curve correction

Image 1
–

Hat embroidery motion curve correction

Image 1
–

How To Ensure Uniform Assembly Of Each Machine?

We use specialized jigs and molds during assembly, ensuring precise fitting, which significantly enhances the stability and quality consistency of our products.



Y-axis rails are adjusted using dedicated molds, with each screw tightened to the same torque, ensuring the rails are level and parallel.

The main-axis motor mount is adjusted with specialized molds to ensure the level and height are consistent.

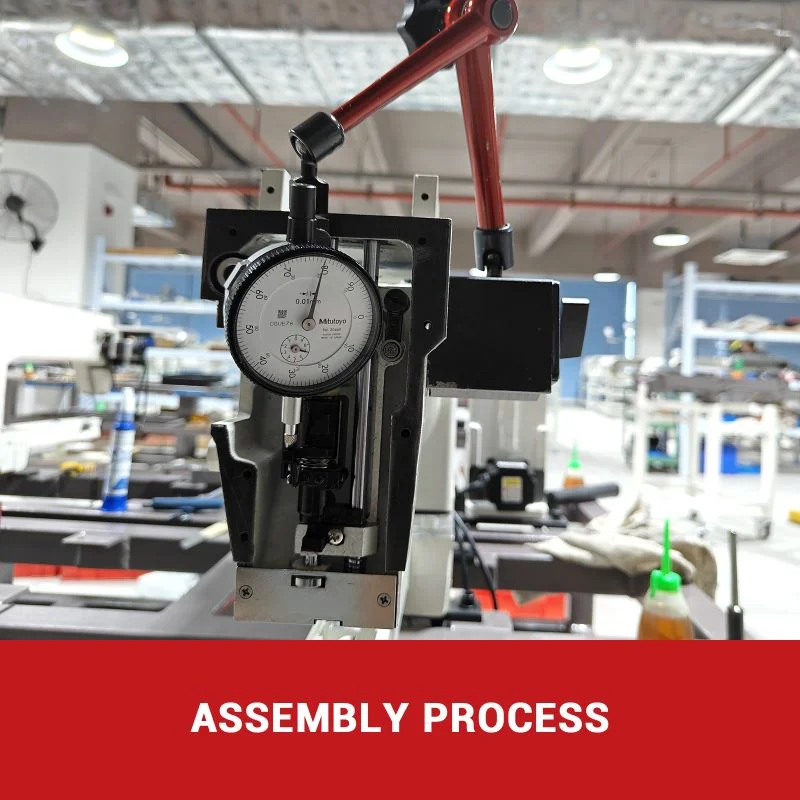

A dial indicator is used to determine the precise degree of the needle bar’s lowest point.

A needle height gauge is used to ensure all needles are set at the same height.



–

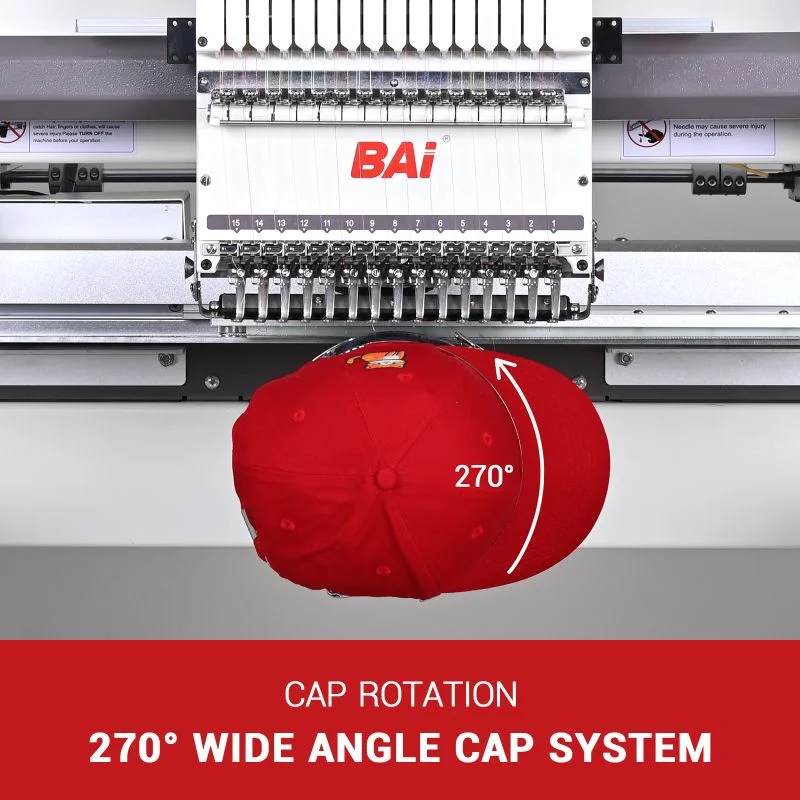

The Perfect Choice for Hat Embroidery

Image 1

Hat embroidery remains stable at a speed of 950 spm.

Image 1

Achieves good results on 1-5 mm 3D foam without thread breaks.

Image 1

Maintains consistency when embroidering the center seam of the hat.

Image 1

Perfect details, even in unseen areas.



–
Institch Cloud supports over 100,000 machines, enabling cross-equipment, multi-model batch pattern file operation, and automatic cost calculation for the embroidery industry.

Institch Cloud

Focus on embroidery industry, support 10W+ equipment online, support cross-equipment, multi-model batch pattern file operationnd and realize automatic cost calculation

Free Practical Tool Softwares

BAi's Transfer Software enhances production efficiency by being perfectly compatible with BAi embroidery machines.
Transfer Software

Perfectly compatible with BAi embroidery machines, it significantly boosts production efficiency for customers.

The cost calculator tool helps calculate the expenses involved in producing an embroidery order.
Calculator

A tool used to calculate the cost required to produce an order.

Wi-Fi Transfer allows for easy and spontaneous pattern transfers, even when you are not on-site.
Wi-Fi Transfer

Transmission is possible even if you are not on site. Make pattern transfers more spontaneous.

–

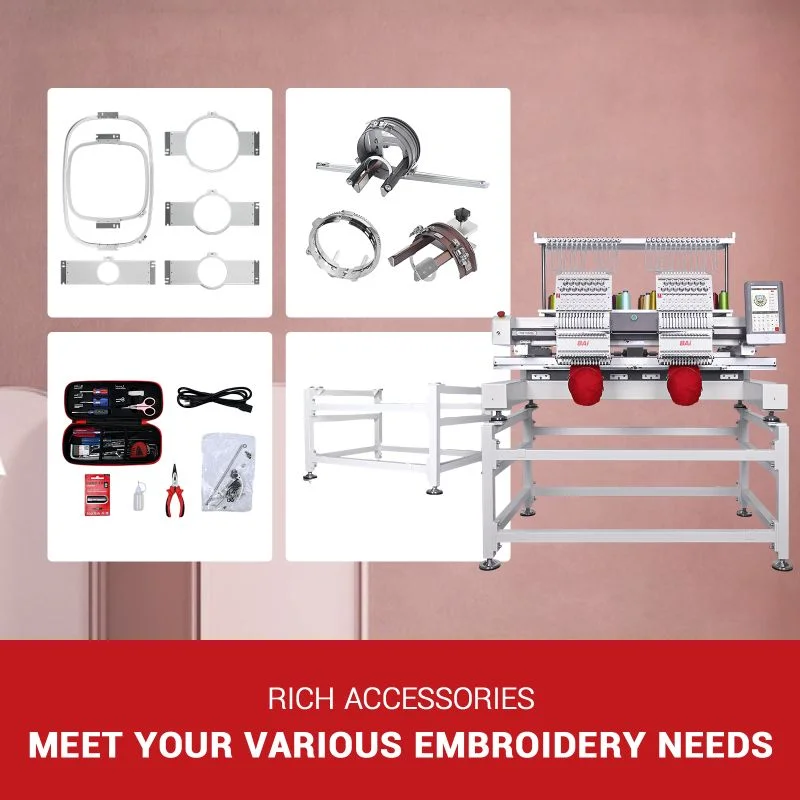

In The Box

 Cap Station                       1pcs

 Hoop(3.5″)                        4pcs

 Hoop(7.8″)                        4pcs

 Stand                                1pcs

 Tool Kit                              1box

 Cap Frame                       4pcs

 Hoop(4.7″)                       4pcs

 Hoop(11.4″)                       4pcs

 Needles                            10pcs

 Supporting Feet               16pcs

 Cap Driver                        2pcs

 Hoop(5.9″)                        4pcs

 Hoop(15.6”)                       2pcs

 Handrails                            4pcs

 Prewound Bobbin              2box

–

Basic Information

   Packing – wooden case
Package Weight – 430kg/948lbs
Machine Weight – 338kg/745lbs
Connection – USB/WIFI
Needles – 15
Max Embroidery Area – 400*500mm(15.7″*19.7″)
Package Size – 167*113*88cm(65.7″*44.5”*34.6″)
Machine Size – 150*87*167cm(59.1″34.2″*65.7″)
Voltage – AC110V-230V 50/60 HZ
Heads – 2
Maximum Speed – 1200 spm
Computer – Institch OS5

–

Embroidery Speed

Embroidery speed comparison for flat embroidery and hat embroidery on BAi machines, showcasing efficient production rates for both types.
